Air Purged Spray Guns
Don’t Have To Break The Bank

Air Purged Spray Guns Don’t Have To Break The Bank

air-purge plural component
spray guns

Air Purged Spray Guns are nothing new to the Polyurethane and Polyurea Coatings industries. The very first air-purged spray gun was designed and patented in 1974. Since 1974, other air-purge plural component spray guns have come to the spray gun market; however, the design, purpose, and functionality haven’t changed much, except for the spray equipment’s material. Many people have been willing to pay 3-4 times as much to have a name brand and a more refined design.

However, other companies have fine-tuned their designs in recent years, paying attention to customer complaints. With customers’ opinions in mind, in 2020, PMC promised to upgrade and enhance the most useful components and functionalities of the AP-2 and AP-3 spray guns, and in 2022, they fulfilled that promise. PMC has combined the most reliable and eliminated the least practical elements of these guns and turned their weakness into an extreme asset.

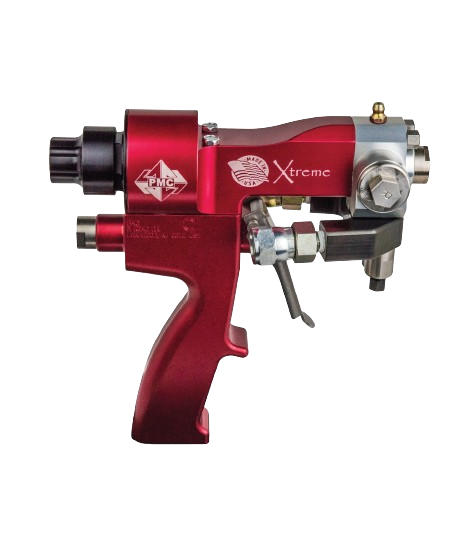

The PMC Xtreme gun offers demonstrated reliability, with as many as 60 sets of material sprayed with the same diamond plated mixing chamber and engineered resin side seal set. The robust trigger assembly has been enhanced, moving to a spool and liner designed for increased reliability and consistency. A spring-loaded check valve locks chemicals from the handle, stopping material seepage into any porting or trigger area.

Air purged spray guns Features:

Aside from its bold red color, other features include;

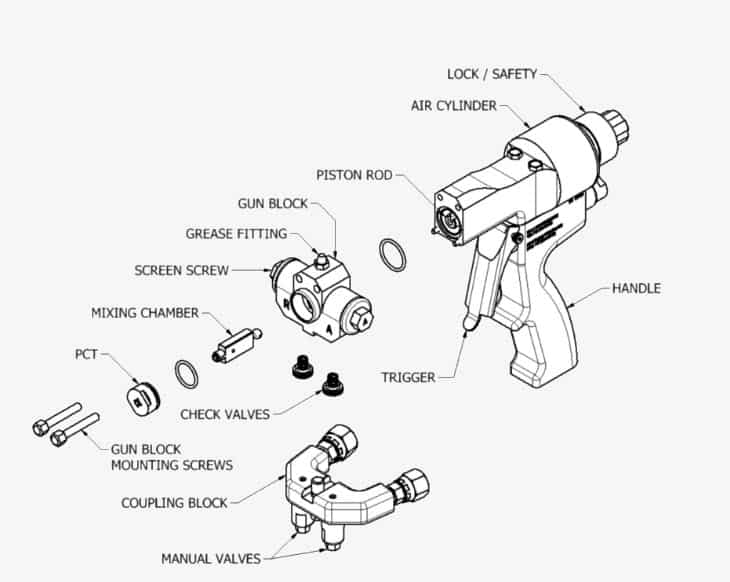

Improved rebuildable trigger assembly, up to 30% faster
Diamond plate mixing chambers
Engineered resin side seal use in NASA
9 Chamber sizes cover all output requirements

With fewer parts, less downtime, and more savings for the end-user, it’s easy to see why the Extreme spray gun has become the number one selling gun.

ArmorThane offers a variety of spray guns, depending on your business needs – from industry-standard spray applicators like the AP series by PMC or Fusion by Graco, to pole extended spray guns like the AP-EX by PMC. We’re here to help you select the right spray gun that’s right for you. Most guns are adaptable to virtually any spray insulation equipment or spray coatings equipment on our website. Interested in purchasing one? Click here to submit your info.

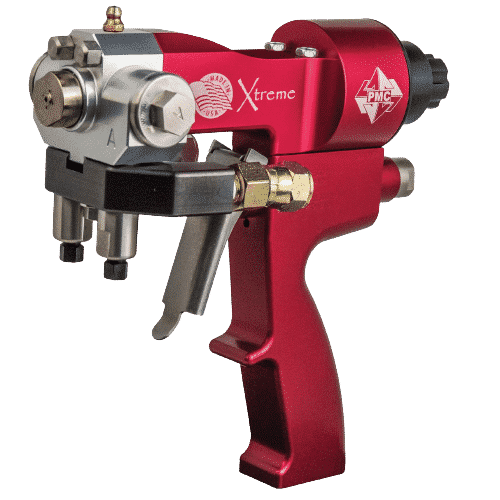

What are the key differences between the AP-3 and the AP-3 Extreme?

With the extension of your hand, PMC took the spray to the extreme extremely lightweight. A contoured lightweight design allows the operator to spray all day and night. More air purge to the extreme. The Xtreme features a newly designed air cylinder with 3 pieces internal check valve for an extreme air purge. Trigger reaction speed to the extreme. All new extremely responsive & rebuildable trigger spool and lining.Extreme finishing: The all-new diamond finished chambers provide superior scratch Two products from ArmorThane that will work well are ArmorFloor, and ArmorLiner. Contact us to find out more about these great products.

What is the maximum working pressure of the extreme gun?

3,500 psi (245 Bar)

What is the weight of the extreme gun?

Weight (Not including Coupling Block): 2.4 lbs (1.1 kg)Weight (Including Coupling Block): 3.1 lbs (1.4 kg)

What is the minumum and maximum output of the extreme gun?

Maximum Output (1:1 ratio): 50 lb/min (22.7 L/min)Minimum Output (1:1 ratio): 3.3 lb/min (1.55 L/min)

What is the opening and closing force of the extreme gun?

Opening Force @ 110 psi (8 Bar): 200 lb (91 kg)Closing Force @ 110 psi (8 Bar): 200 lb (91 kg)
