HIGH PRESSURE SPRAYING EQUIPMENT
IS COMMON IN INDUSTRIES SUCH AS

Below you will find a selection of some of our top selling spray systems. If you are looking for anything in particular but don't see it here, be sure to reach out to us as we carry dozens of options.

cq5dam.web .1280.1280 1 e1683731948495

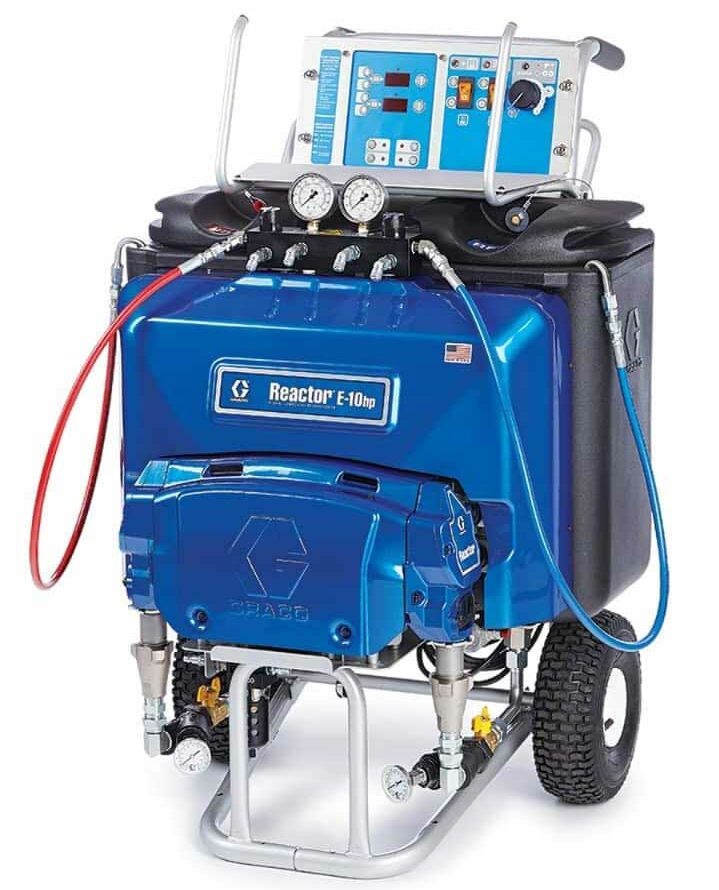

Reactor E-10hp

The Reactor E-10hp provides the high pressure power and performance you need to spray polyurea coatings. It's lightweight and portable – and runs on residential power so you don’t need to invest in a generator. With the system’s innovative boost heat and insulated tanks, material heats up fast so yo... More Info

Output


 1 gpm


Max Working Pressure


2,200 psi (150 bar) for 120V units and 2,500 psi (172 bar) for 230V units

Max Hose Length

105 ft



Heater Wattage




Electrical

Plugs into standard 120V or 230V

Reactor 2 H XP2

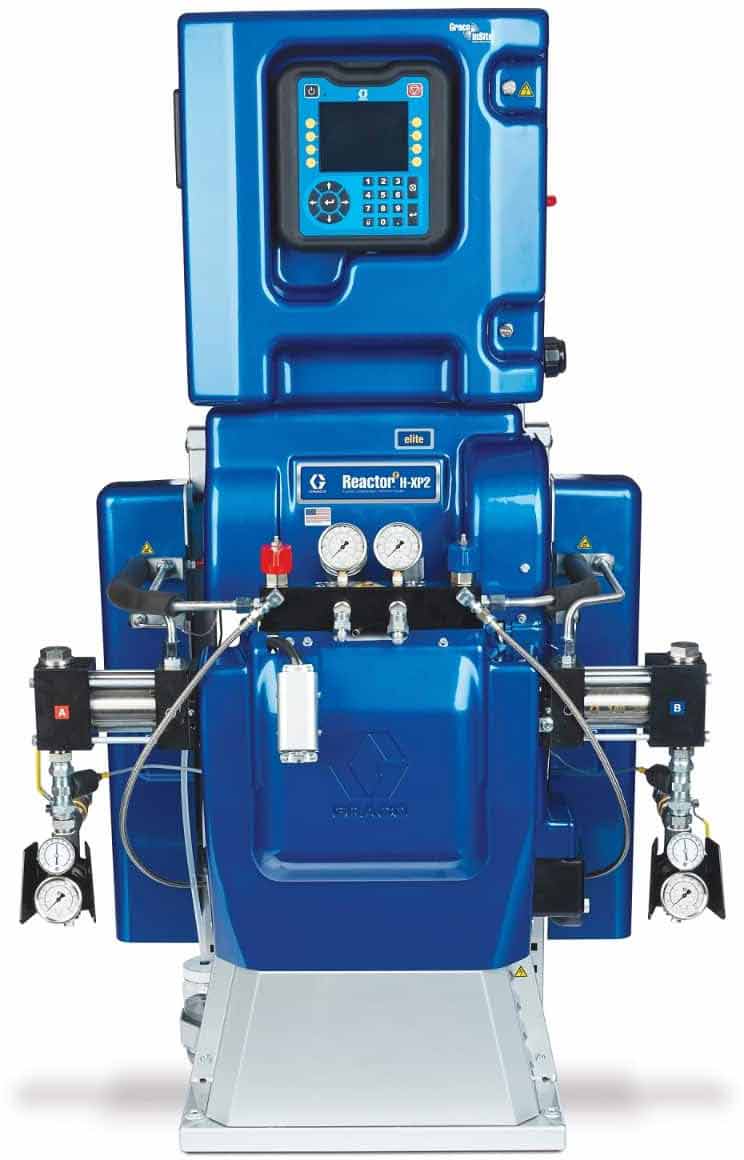

Reactor 2 H-XP2

Graco's hydraulic Reactor 2 H-XP2 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes. For coatings that require high-pressures - applies up to 1.5 gal (5.7 liters) per minute.

Output


1.5 gal (5.7 liters) per minute.


Max Working Pressure


3500psi

Max Hose Length


310 ft (94 m)

Heater Wattage


15.3 kW


Electrical





3116 44843 1

Reactor 2 H-XP3

2.8 gal (10.6 liters) per minute
Graco's hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes. For coatings that require high-pressures - applies up to 2.8 gal (10.6 liters) per minute.
The Reactor 2 h-XP3 is engineered to process and spray polyurea and other coatings that require high pressures. It is the next generation technology for polyurea coatings.

Output


1.5 gal (5.7 liters) per minute.


Max Working Pressure


3500psi

Max Hose Length


310 ft (94 m)

Heater Wattage


15.3 kW


Electrical





PH 55

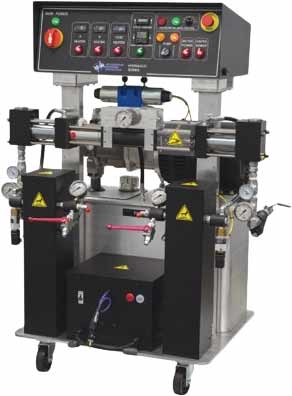

PHX-55

PHX-55 3500 psi (241 Bar)

At 3.25 gal/min, the PHX-55 is the highest output high-pressure proportioner available from PMC. The best in rugged design with dual 21kw (total) heaters, the PHX-55 is perfectly suited for the most demanding commercial coatings applications.



Output

3.25 gal per minute



Max Working Pressure

3500 psi (241 bar)




Max Hose Length


400 ft


Heater Wattage




Electrical

PHX 25 1

PHX-40

PHX-40 3500 psi (241 Bar)
Ideal for use in High Output Plural Component Coatings Applications
The highest value “Classic” dual-heater style proportioner – at 2.8 gal/min output, the PHX-40 was designed for medium to large scale / commercial coatings applications.

Output

2.8 gal/min (10.59 liters/min)





Max Working Pressure

3500 psi (241 bar)




Max Hose Length

410 ft (121.9 m)


Heater Wattage

15,000 watts Total (Dual htr)
18,000 watts Total (Dual htr)
21,000 watts Total (Dual htr)



Electrical

120 Volts


PHX 25 1

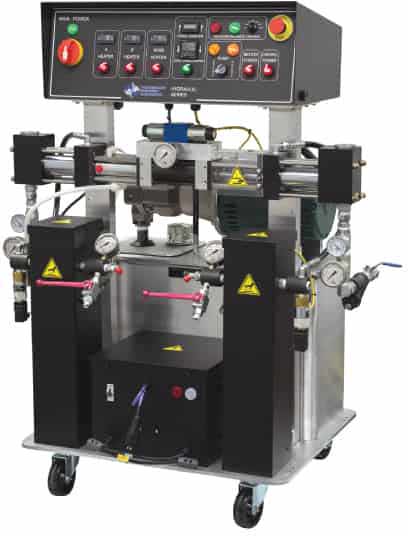

PHX-25

PHX-25 3000 psi (207 bar)
Ideal for Use in Plural Component Coatings Applications
At 1.9 gal/min, the PHX-25 covers a wide ran

Output

1.9 gal/min (7.19 liters/min)




Max Working Pressure

3,000 psi (206 bar)




Max Hose Length

310 ft (94.5 m)


410 ft (121.9 m) w/120V Trans



Heater Wattage

8,000 watts Total (Dual htr)
10,000 watts Total (Dual htr)
12,000 watts Total (Dual htr)



Electrical

90 Volts



PH 2 2

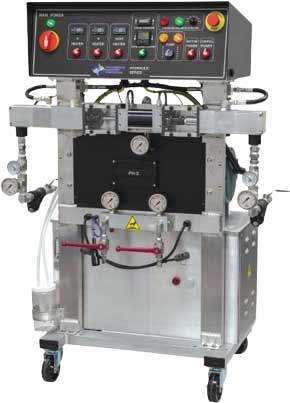

PHX-2

PHX-2 3000 psi (207 bar)

Ideal for Use in Plural Component Coatings Applications
1.7 gal/min proportioner, suited to bed liner / small scale coatings applications; high value performance at an entry level price.

Output

1.7 gal/min (6.43 liters/min)


Max Working Pressure

3,000 psi (206 bar)

Max Hose Length

210 ft (64 m) w/70V Trans
310 ft (94.5 m) w/90V Trans
410 ft (121.9 m) w/120V Trans

Heater Wattage

210 ft (64 m) w/70V Trans
310 ft (94.5 m) w/90V Trans
410 ft (121.9 m) w/120V Trans

Electrical

Main Voltage
1 x 208-230V, 50/60 Hz
Electrical @ 230V Single Phase
103A–14,000W heaters
Main Voltage
3 x 208-230V, 50/60 Hz,
3 x 380V, 50/60 Hz
Electrical @ 230V Three Phase
60A–14,000W heaters
